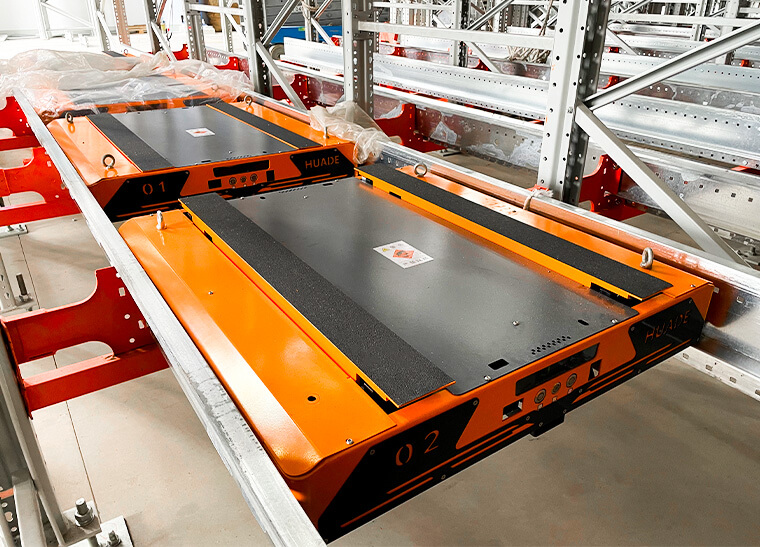

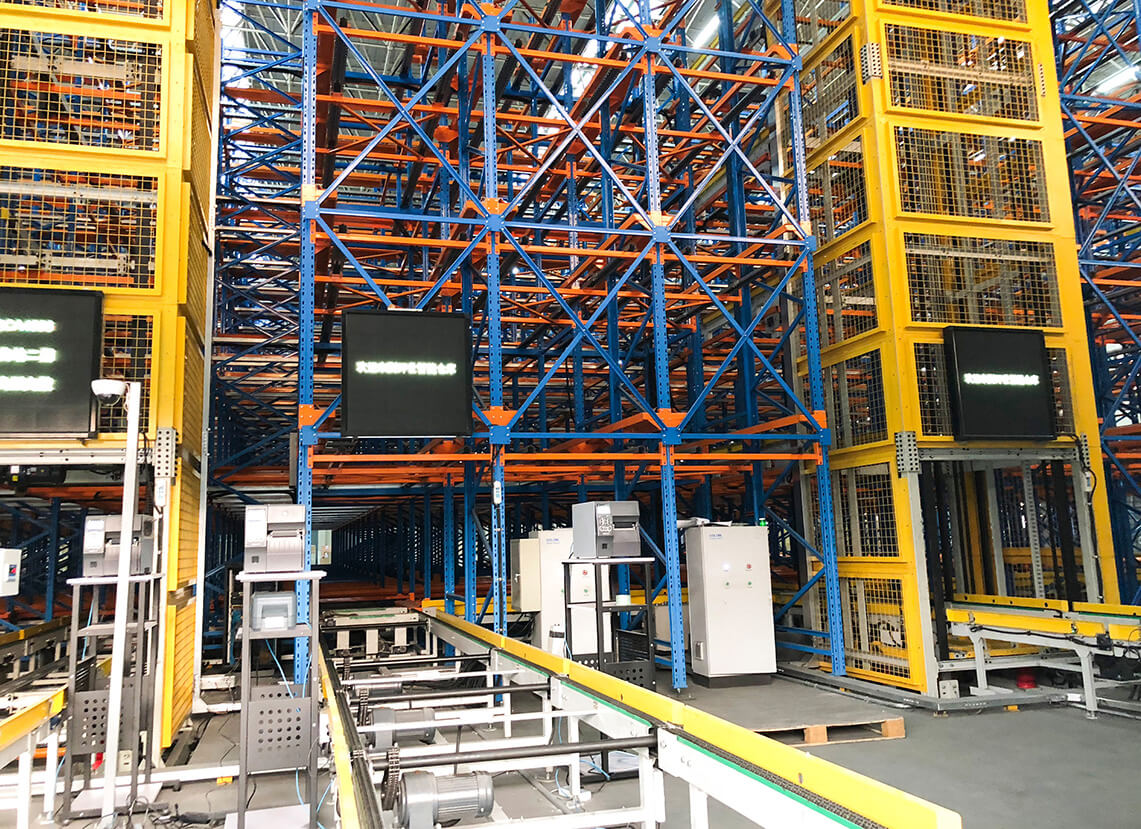

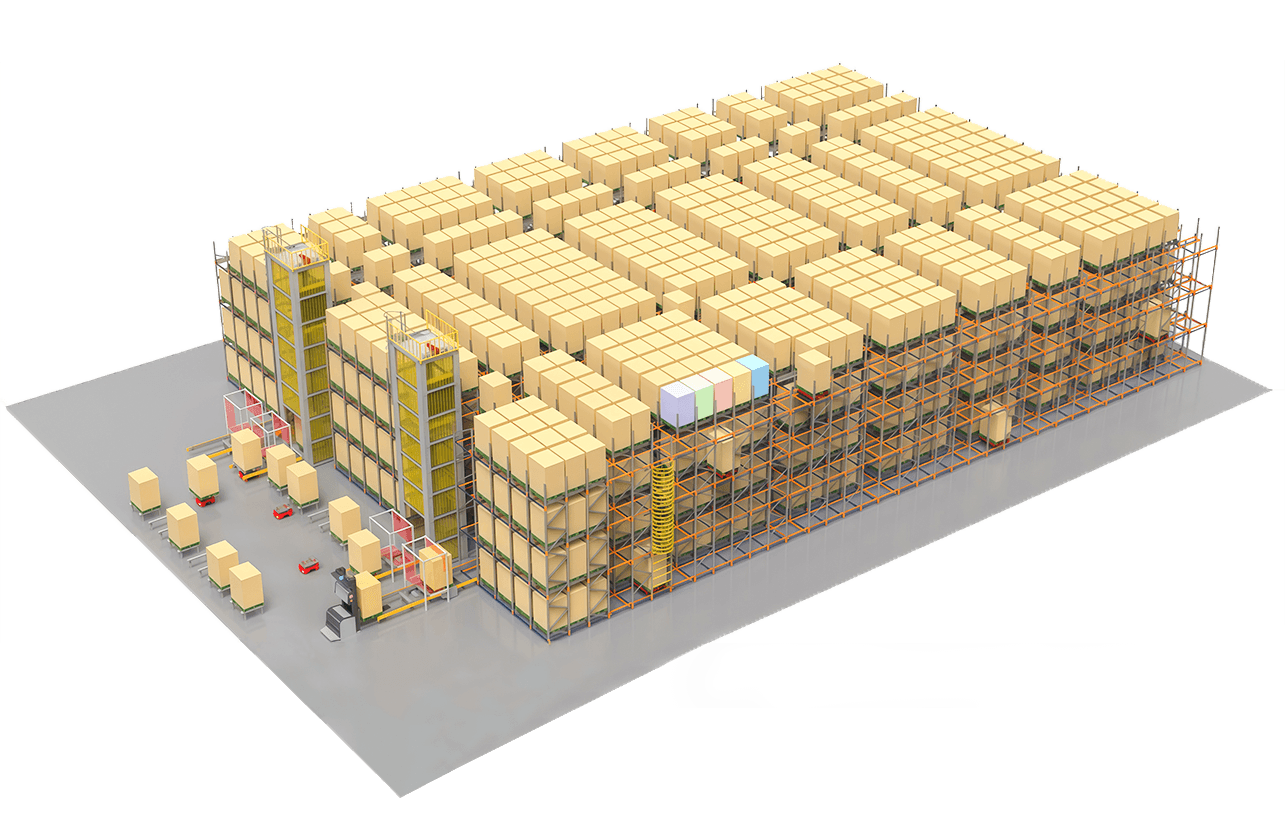

Intelligent four way pallet shuttle fully automated warehouse
An Intelligent Four-Way Pallet Shuttle Automated Warehouse is a high-density AS/RS (Automated Storage and Retrieval System) designed for palletized goods.The system integrates four-way pallet shuttle robots, shuttle racking, vertical lifts, conveyor systems, and intelligent software platforms to enable fully automated pallet storage, retrieval, and internal transportation.
Although there are many mature solutions for high-density, multi-depth pallet warehouse storing, like Radio Shuttle System, Stacker Crane plus Satellite System, Mother & Baby Shuttle (satellite) System, but space are still left for more specific market and industries. Since 2016, HUAYIDE team had input research and development on Four Way Pallet Shuttle for exploring more flexibility and further expansion in fully automatic pallet storing and retrieval system.
The system adopts multi-deep dense storage architecture combined with compact racking layouts and vertical storage design. Warehouse heights can exceed 24 meters, allowing full utilization of vertical space.
Compared with conventional flat warehouses, the four-way shuttle system can increase storage capacity by over 300%, making it ideal for regions where industrial land resources are limited.

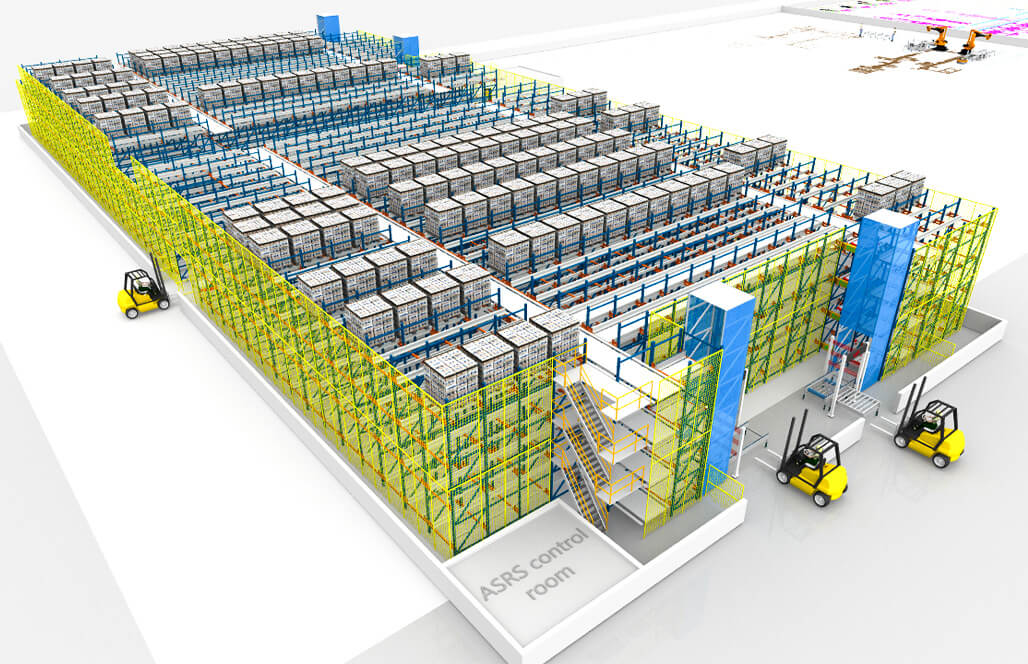

Key design characteristics include:
Multi-deep pallet storage lanes

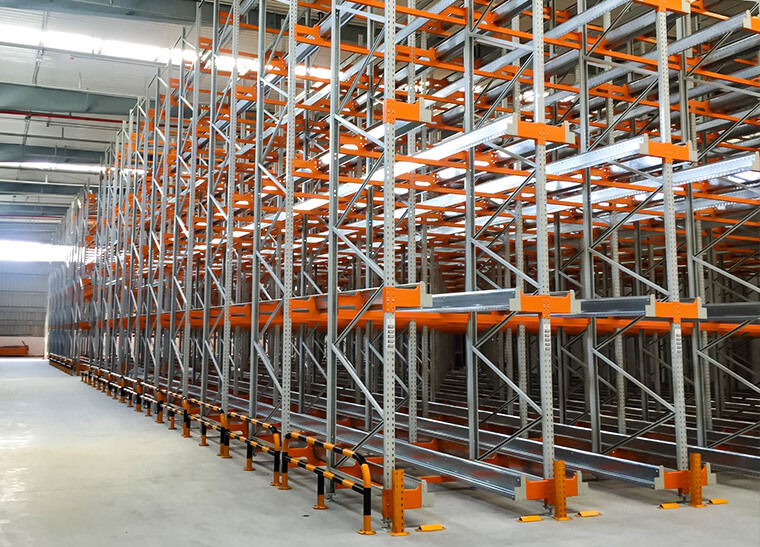

Narrow aisle rack structures
Cross-track shuttle rail systems
High-bay storage configurations
These elements collectively maximize cubic space utilization while maintaining efficient access to inventory.
The HUAYIDE system is designed with modular expansion capability.
As business demand grows, operators can expand the system by:
Adding additional shuttle robots
Extending rack blocks

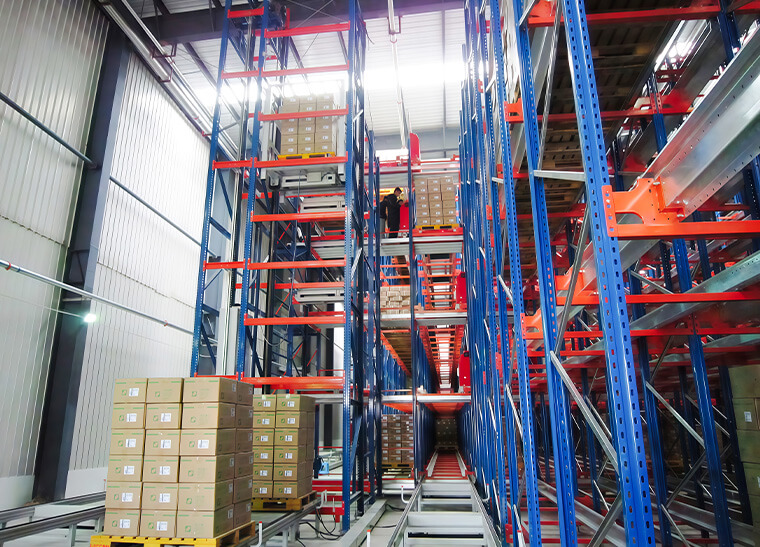

Increasing lift capacity

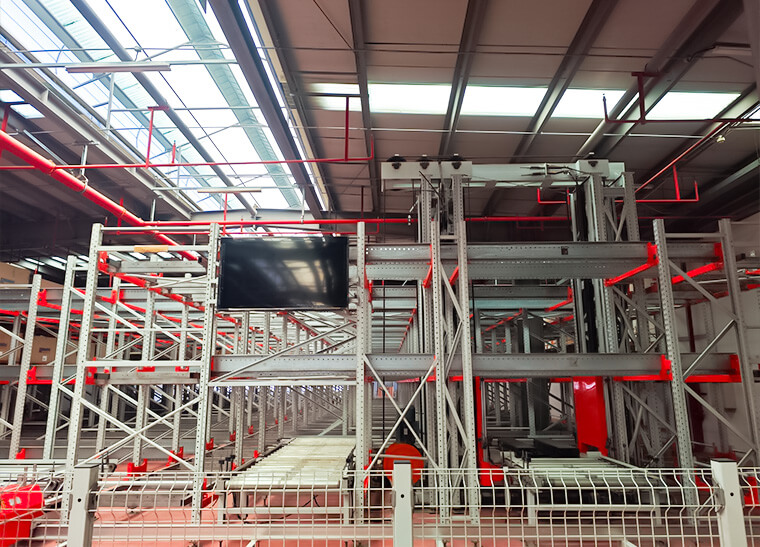

Expanding conveyor lines
This modular architecture allows phased investment and gradual automation upgrades, reducing initial capital expenditure while supporting long-term warehouse growth.
Multiple shuttle vehicles can operate simultaneously within the warehouse, executing inbound, outbound, and relocation tasks in parallel.
Key efficiency features include:
Multi-vehicle collaborative operation
Dynamic task allocation
Optimized routing algorithms
Parallel order processing
This enables the system to handle large-scale pallet throughput while maintaining stable performance under peak operational loads.
HUAYIDE adopts a software-defined hardware philosophy, where intelligent software determines the operational efficiency and coordination of the entire warehouse system.

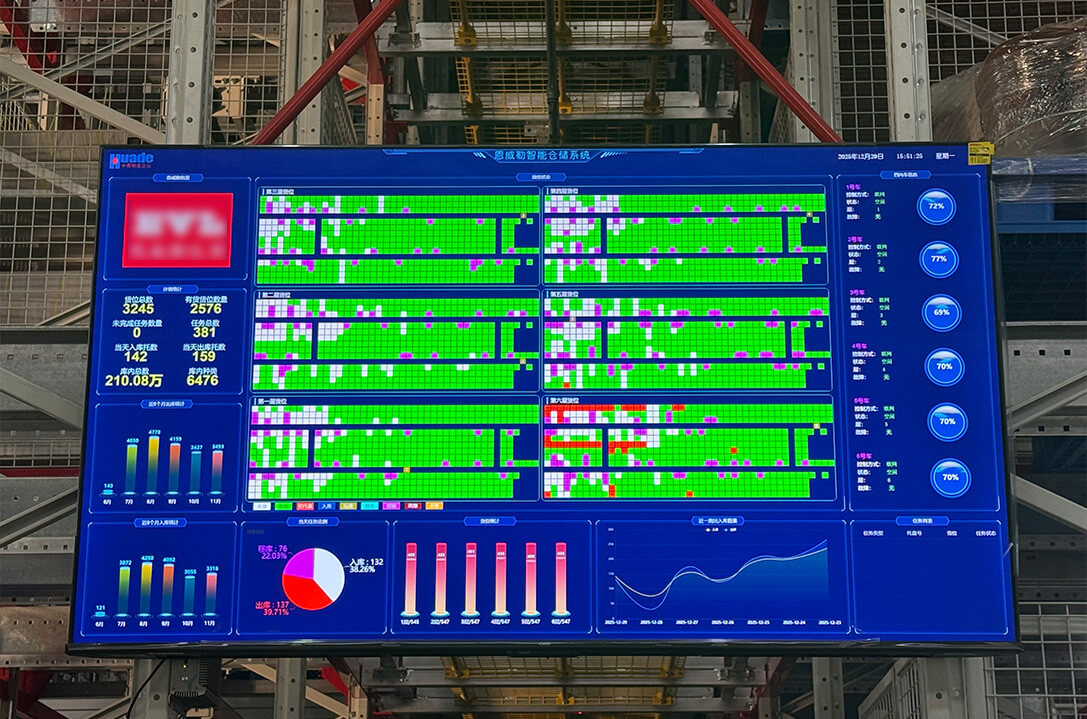

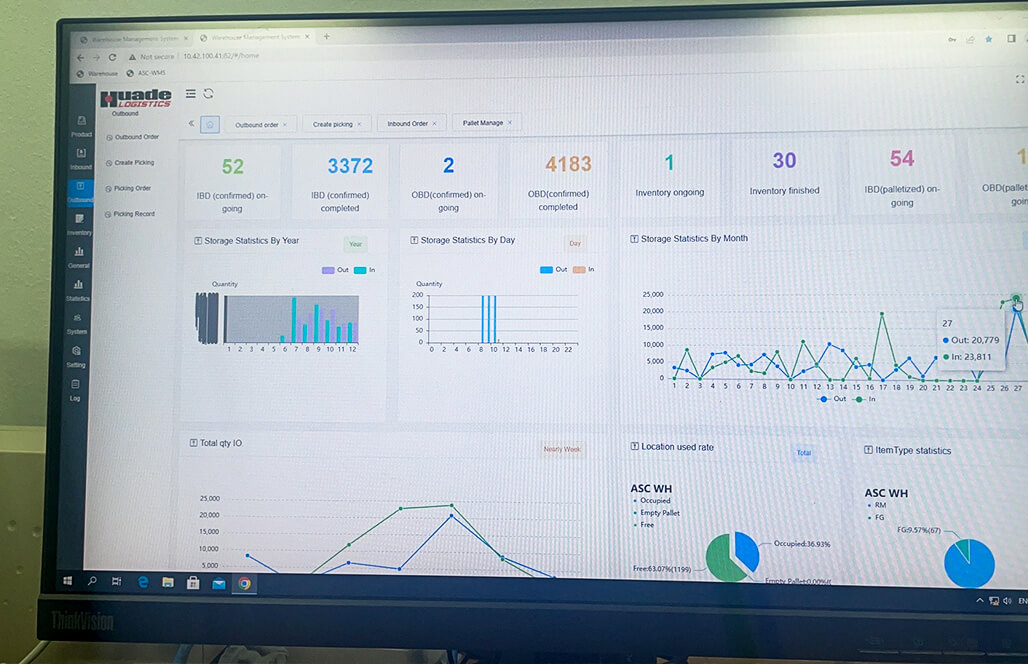

HUAYIDE's four-way shuttle system is built on independently developed WMS and WCS, realizing dynamic management of stored items and ensuring consistency between physical inventory and book data. WMS synchronizes data with ERP systems in real time, optimizes the entire process from storage to shipping, and allocates resources efficiently for order fulfillment.
Additionally, HUAYIDE provides accurate regional visualization of downstream capacity, destination availability and equipment status, helping to maximize warehouse space utilization.
A typical HUAYIDE four-way pallet shuttle warehouse consists of four major subsystems.
The operational workflow of the system follows a coordinated automation process.
Pallets enter the system through conveyor lines.
The WMS determines the optimal storage location based on product type and storage strategy.

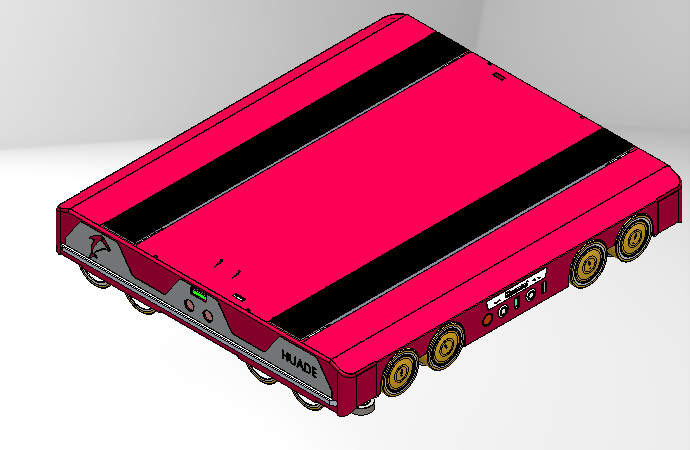

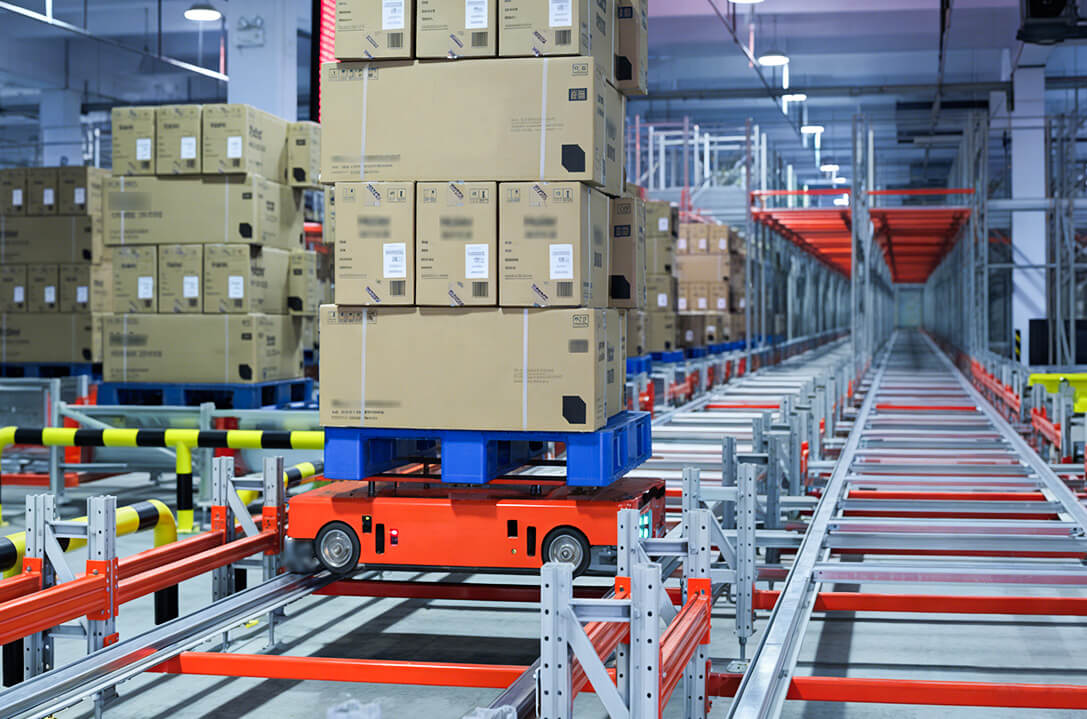

A shuttle vehicle receives instructions from the control system and transports the pallet to the assigned storage lane.

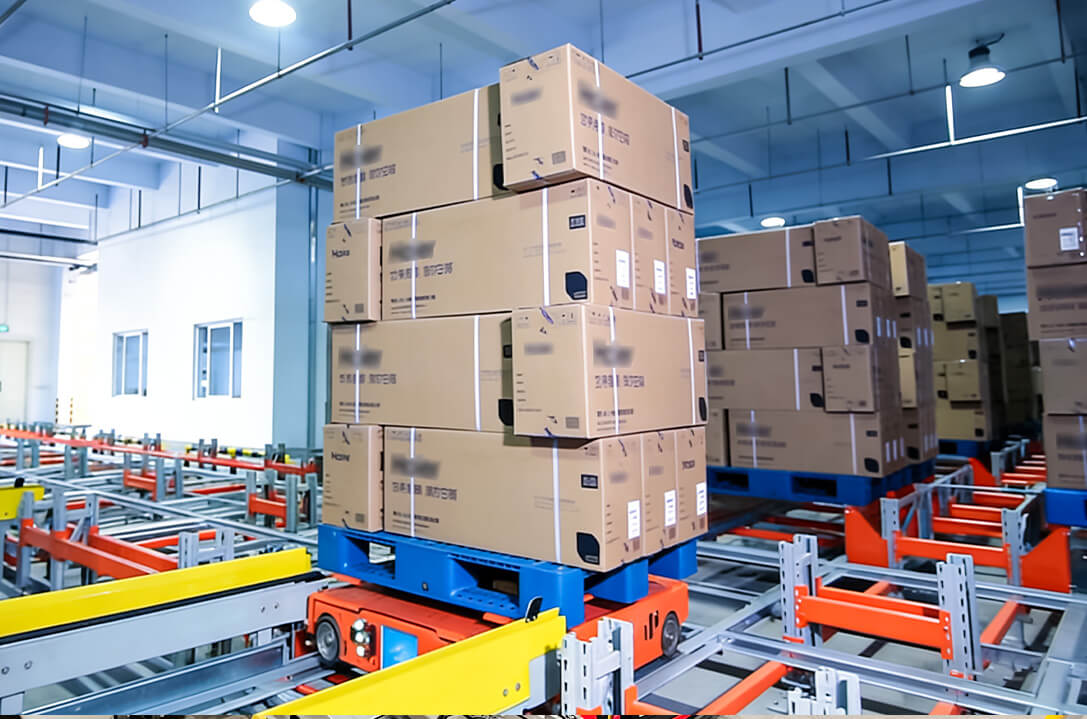

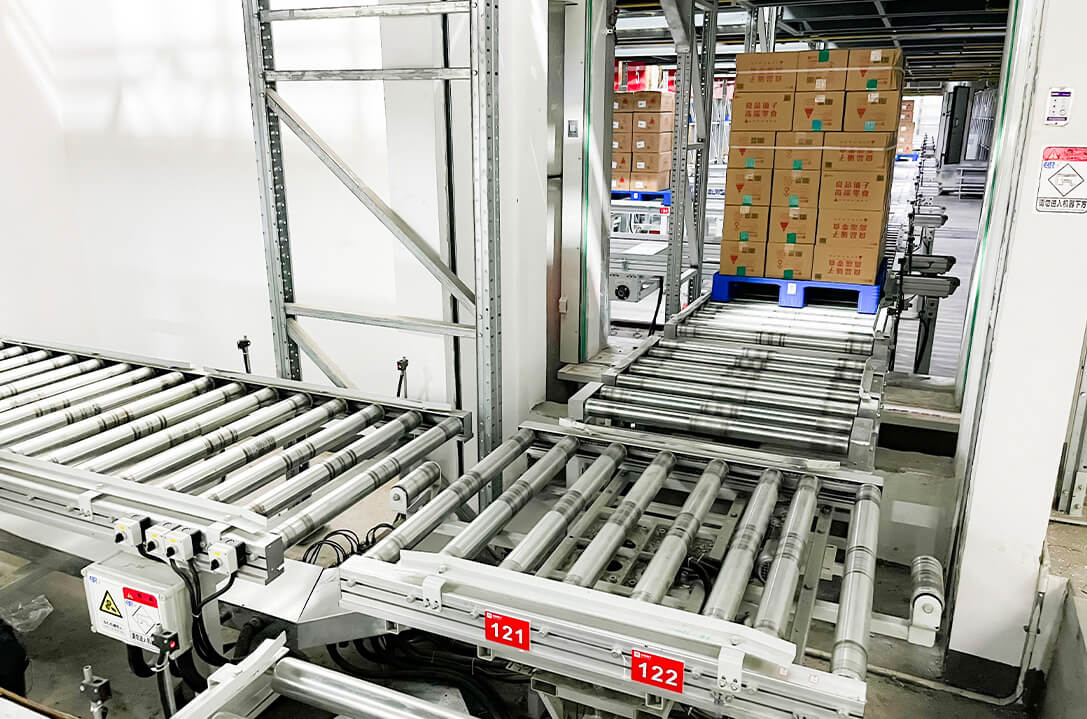

The shuttle places the pallet at the designated rack position.

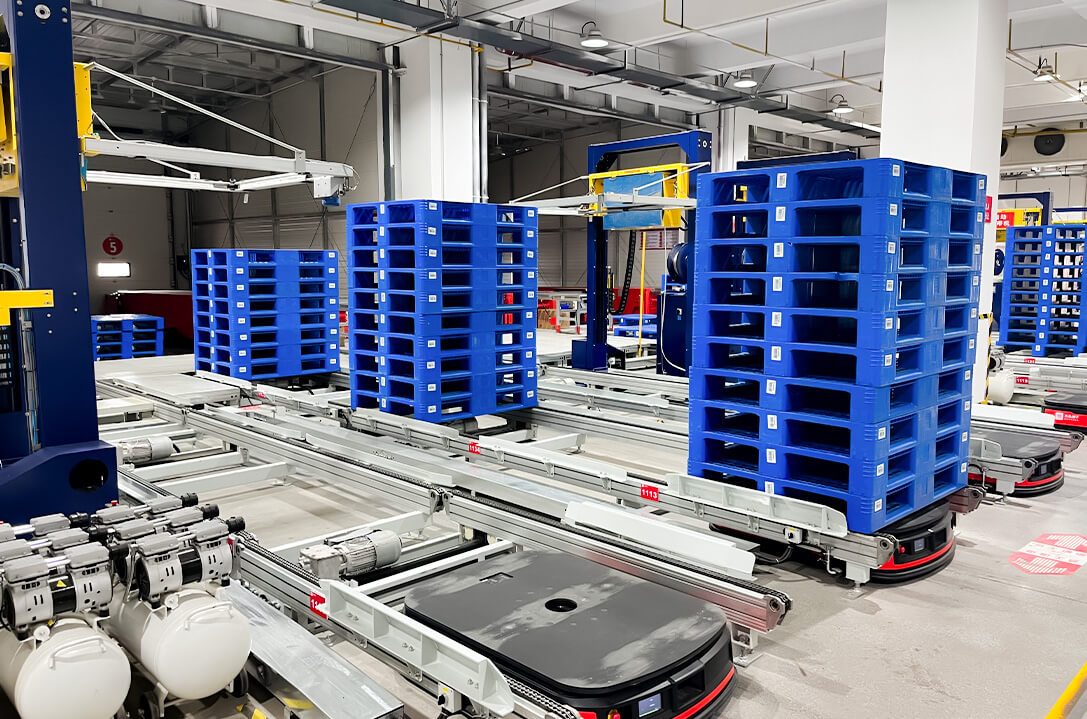

When an order is triggered, the system automatically retrieves the pallet and sends it to the outbound station.
The four-way shuttle system offers significant flexibility in both warehouse layout and storage strategy.
FIFO (First-In-First-Out)FILO (First-In-Last-Out)Batch-based storageClassified storageLow-height warehouses (<13.5 m)Multi-floor buildingsHigh-bay automated warehousesIrregular or complex building layoutsStandard WarehouseTemperature: −5°C to 45°CHumidity ≤ 85%Low-Temperature StorageTemperature: −5°C to 15°CHigh humidity environmentsCold StorageTemperature: −25°C to −15°C
The four-way pallet shuttle warehouse is widely used across industries requiring high-density pallet storage.
Large storage & footprint, bulk in/outLong storage cycle, moderate throughputHigh pallets per SKUApplications: High-density storage, flexible aisle designCompact storage, adjacent to production (often multi-level)Bulk in/out, moderate storage cycle, efficient throughputLow pallets per SKUApplications: Flexible aisle design, DMS dynamic slottingCompact storage, FIFO operationVery short cycle, ultra-high throughputLow pallets per SKUApplications: Multi-shuttle parallel operation.Large storage & footprint, bulk in/outShort cycle, high throughputLow pallets per SKUApplications: Flexible aisle design, EIS intelligent slotting, multi-shuttle operation
Over nearly a decade of development, the system has undergone multiple upgrades, achieving:

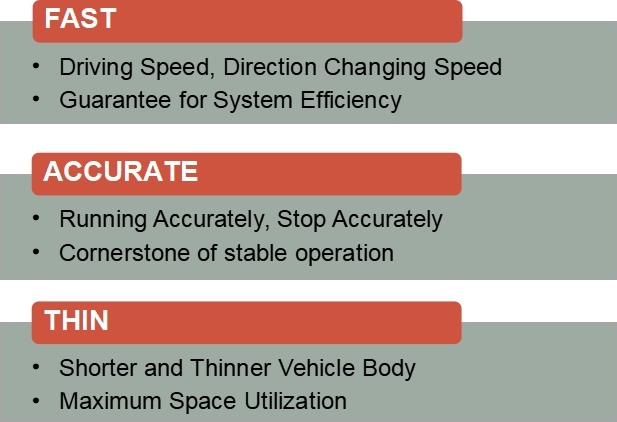

Higher travel speed
Lighter vehicle structure
Higher positioning accuracy

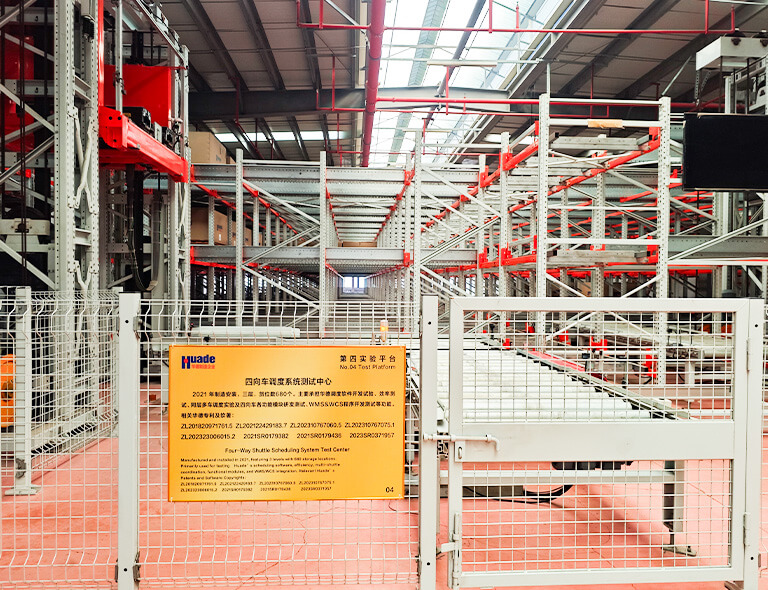

Used for:
Shuttle scheduling software development
Multi-vehicle coordination testing
Efficiency performance experiments
WMS and WCS program testing

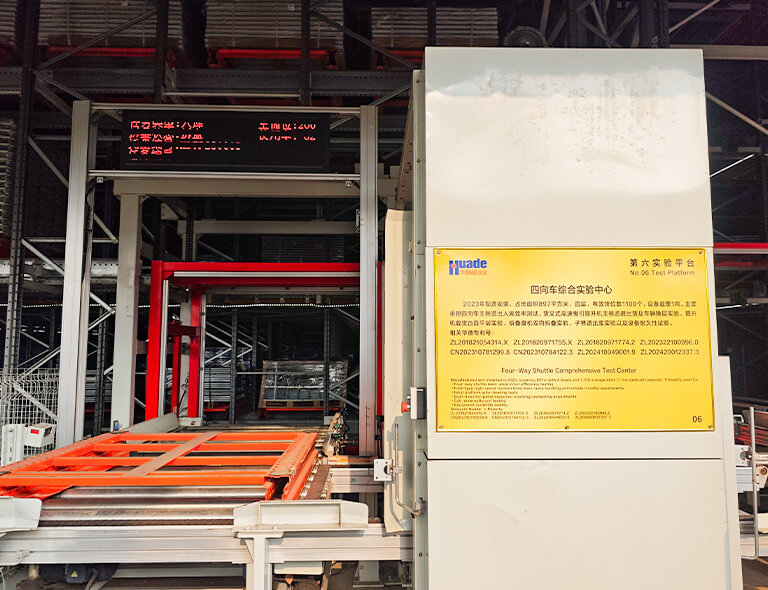

Used for:
Main aisle inbound/outbound efficiency testing
High-speed lift experiments
Vehicle level-transfer testing
Equipment durability testing
